OpenJTAG

Model Standard
Vendor Quickembed Trakmark
In Stock Yes Lead Time  3 days
Promotion Update Time
Voucher Limit
Product Name OpenJTAG
Product ID 2011051822520151 Warranty  1 Year
Price US$59.00/unit

Shipping Fee and tax not included.

Turn your prospective idea into practical product real profit in 6 months.
Product Introduce:

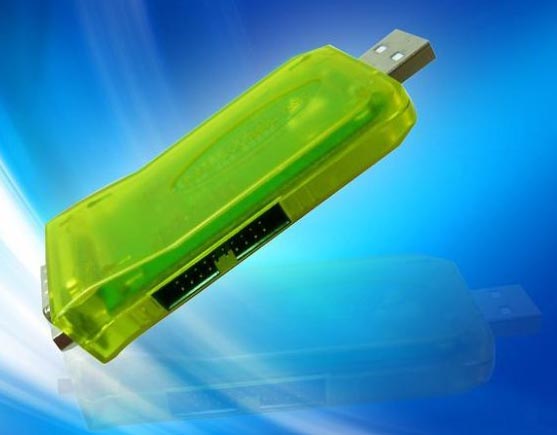

USB to JTAG programmer, debugger
Product Detail:

OpenJTAG can be used on all the tools that supports GDB, like IAR, Eclipse, Winarm. But it can't be used on tools that only suipport RDI, for example, ADS, Keil MDK.



OpenJTAG is a great three-in-one (USB to JTAG, USB to serial port, on-line debugging) debuger. It can be used on both desktop and laptop even lack of serial or parallel ports, to debug ARM7, ARM9, Cortex-M3, XSCALE series CPU of nude board procedures, bootloader, the kernel, etc.


In the embedded development field, there are a lot of good debugging and simulation tools, such as Keil, IAR, Rowley Associates, and so on. Although they are easy to install, convenient to use, and provide powerful functions, but too expensive (several hundred dollars or more), even need to buy support hardware, eg. the J-Link, U-Link USB to JTAG the box, which is not a small sum of expenditure.

For the students or some engineers who has a limited budget for development , they can use free development tools, such as Eclipse, OpenOCD, then through some of the cheapest JTAG adapter (such as JTAG parallel port, etc.) will be able to reach the effect that close to or even beyond the above-mentioned commercial software.

Parallel Port JTAG rate is too low, in general rarely used to debug. This course use OpenJTAG converters, with Eclipse, OpenOCD, and other open source software, you can complete downloading, programming and debugging tasks and so on.

For s3c2410 and s3c2440 board, there is an programmer named flash, it can use OpenJTAG to burn the Nor flash or Nand flash directly.


OpenJTAG package performance:
Hardware features:
USB:
USB2.0 full-speed interface
use of USB power
Plug and Play

JTAG:
IEEE 1149.1 standard
6Mbits/sec largest rate
150 times of parallel port JTAG
Multi-ICE 10-pin socket
Multi-ICE 10-pin socket
target system 3.3V

Serial port:
RS232 Standard
7 or 8-bit of data
2 or 1 bit of stop
odd check/dual check / mark / space / no check
235kbps maximum baud rate

On-line debugging features:
Support for multiple CPU series: ARM7, ARM9, Cortex-M3, XSCALE

Features:

  • USB2.0 high-speed JTAG interface
  • All ARM (ARM7, ARM9, Cortex-M3, XSCALE) core supported
  • On-line debugger OpenOCD installation and course (Linux / Windows version)
  • Seamless integration into the Eclipse IDE development environment (winodws / Linux version)
  • Easy ARM9 board NOR / NAND Write tool

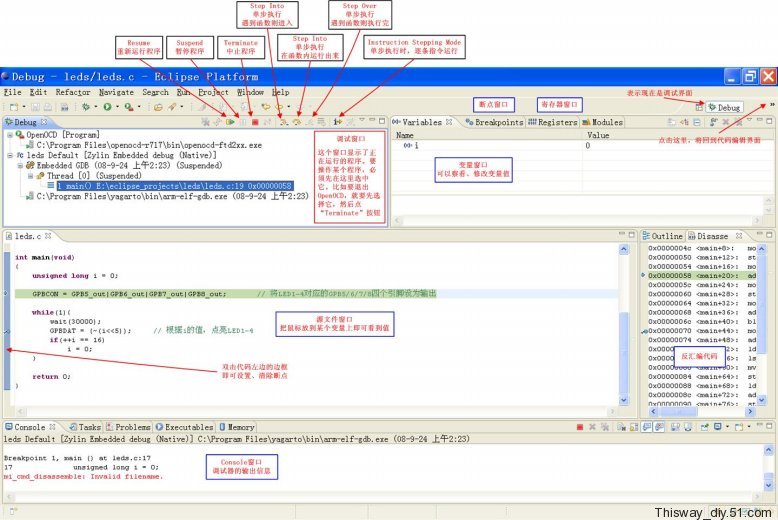

  • Real-time debugging features: one-step, running at full speed, reset, hardware / software breakpoints, jump etc.
  • CPU registers, memory, variable observation window (dynamic changes in real-time view)
  • support ARM's built-in Cache and MMU function
  • Wide target voltage range: 1.2V - 3.3V, 5V tolerant
  • 2 JTAG interfaces : 10-pin 2.0mm spacing, 20-pin 2.0mm spacing
  • USB to RS232 Serial Port Converter
  • Driver: support Linux2.4 or later, Windows ME/2000/2003/XP

Write S3C2410, S3C2440 Nandflash:

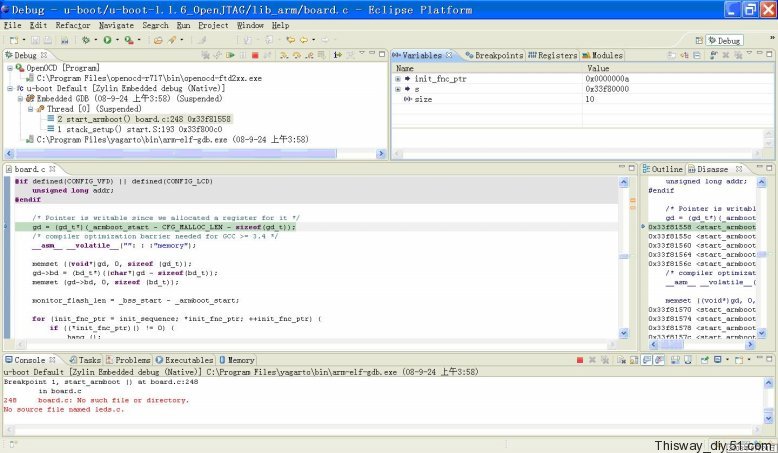

Debugging uboot

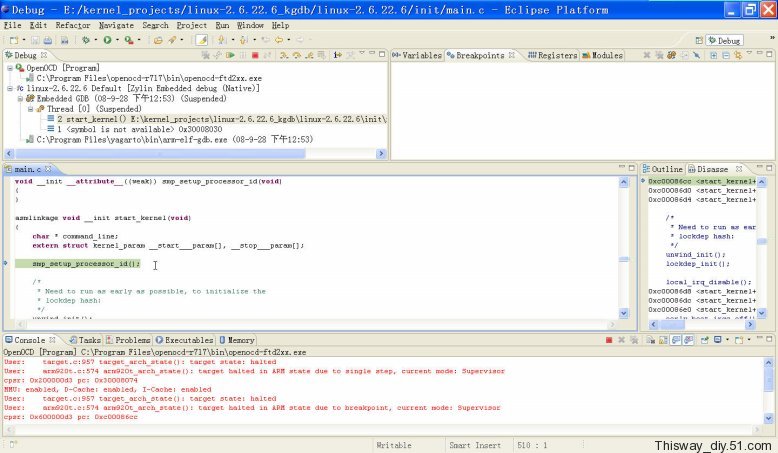

Debugging Linux kernel:
