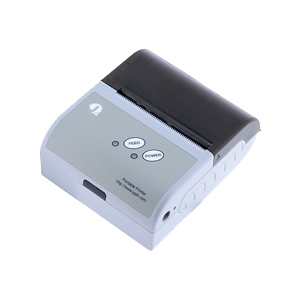

portable receipt printer. print clear and easy, police, tobacco, postal services, transportation, distribution...
|
  149USD
Specifications:
| Printing Performance |
Print method |
Thermal Printing |
| Print Density |
8 dots / mm, 384 dots / line |
| Effective print width |
48mm |
| Print speed |
50 mm / sec |
| Character / Character Graphics / Barcode |
Languages and libraries |
12 × 24 points, 9 × 24 points, |
| Chinese Font |
GB 12 characters, 24 × 24 points |
| Custom Characters |
Support |
| Barcode |
Supports UPC-A, UPC-E, EAN-13, EAN-8, CODE39, ITF25, CODABAR, CODE93, CODE128 barcode printing etc. |
| Graphics |
Supports different density point map and downloaded graphics printing |
| Detection method |
Out of paper alarm |
Support |
| Overheat protection |
Support |
| Black benchmarking |
Support |
| Auto-sleep feature |
Support |

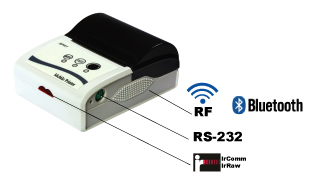

| Interface parameter |
Wired |
RS-232 serial interface |
| Wireless |
Bluetooth: T3-BT-type machines IrCOMM: T3-Ir-type machines Raw-Ir: T3-Ra-type machines |
| Power Parameters |
Battery |
1500mAh/7.4V |
| Chargers |
9V/2A, in support of direct external power supply Print |
| Battery alarm |
Support |
| Reliability |
Printer Head Life |
50km |
| Paper |
Paper Type |
General thermal paper |
| Paper width |
57.5 ± 0.5 Haomi |
| Paper Thickness |
0.06 ~ 0.08 millimeters |
| Paper Roll Diameter |
ф40 mm (diameter) / ф13 mm (diameter) |
| Paper loading method |
Easy paper loading |
| Cutting method |
Manual 撕纸 |
| Physical Characteristics |
Operating temperature / humidity |
0 ~ 50 ℃ / 10 ~ 80% (relative humidity) |
| Storage temperature / humidity |
-20 ~ 60 ℃ / 10 ~ 90% (relative humidity) |
| Dimensions (mm) |
103 × 77.4 × 36 (L × W × H) |
| Weight |
About 200g (excluding paper rolls) |
Please note: you are using a wireless interface mode of the printer type (Bluetooth or infrared), depending on the model!
199USD
| Bluetooth Printer |
| Print method: |
Line thermal printing |
| Paper width: |
58mm |
| Dimensions: |
90 × 76 × 36mm |
| Weight: |
220g (excluding paper rolls) |
| Roll Diameter: |
≤ 30mm |
| Print Line Width: |
characters / line 32 English characters / line or 24 characters / line 48 English characters / line |
| Chinese character coding method: |
GBK, Unicode |
| Built-in fonts: |
ASCII character (12X24, 8X16), GBK (24X24, 16X16) |
| Print speed: |
4cm / s [10 lines / sec] |
| Printer core life: |
million pulses50km (25% print density or less) / 100 million pulses |
| Printable Content: |
In English, numbers, symbols, characters, graphics, curve,Bar code (CODE39, EAN13, EAN8, CODABAR, CODE128, CODE93, ITF) |
| Resolution: |
203dpi (8 dots / mm) |
| Data Communication Interface: |
Serial port (RS232) / Infrared (IrDA RAW-IR VIR))
Serial port (RS232) / Bluetooth (BLUETOOTH) |
| Wireless communication parameters: |
IrCOMM agreement or VIR agreements or RAW-IR can be set to
Bluetooth V1.1 CLASS 2 |
| Power: |
650mAh 7.2V rechargeable NiMH battery |
| Charging method: |
Machine Charge |
| On a single charge can be printed length: |
print density can be printed 30 ~ 60m |
| Anomaly detection: |
Out of paper detection, lack of detection of power |
| Black Label Positioning features: |
Have |
| Paper loading method: |
Clam shell paper loading |
| Cutting method: |
Manual |
| Instruction set: |
ESC / POS compatible instruction set |
| Standard Accessories |
Long-term thermal paper, portable sets, power adapter, battery |
| Optional accessories |
Dedicated serial data lines, dedicated battery charging seat |
