- Samsung's S3C2416X ARM926EJ core Processor, Operating frequency 400MHz
- 64MBbyte DDR2 SDRAM + 128MByte Nand Flash
- Boot System from Nand Flash or SD Card
- UART, USB, Ethernet, LCD, Touch Screen, Audio, SD card, Jtag,...
- Supporting WinCE 5.0

Hardware Features

• Dimension: 103mm x 137mm (expansion board)
  65mm x 45mm (CPU board)
• Power supply: +5V
• Working temperature: 0~70°C
• Processor: Samsung S3C2416X ARM926EJ microcontroller with MMU, Operating frequency 400MHz
• 64Mbyte DDR2 SDRAM
• 128Mbyte Nand Flash
• 10M/100M Ethernet port
• 3 serial ports (COM0: five-wire RS232 serial port, COM1/COM2: two three-wire RS232 serial ports)
• 1 USB 2.0 Full Speed Host port
• 1 USB 2.0 Full Speed Device port
• LCD/Touch Screen interface
• Audio input and output interfaces
• RTC (with a backup battery)
• 20-pin JTAG interface
• 4 LEDs (Four programmable leds)
• 6 Buttons (five programmable buttons and one Reset button)
• SD card slot

Software Features

OS	Item	Feature	Description
Wince	Bootloader	stepldr	Copy Eboot to SDRAM to jump to Eboot
		Boot Mode	Boot from Nand Flash or SD card
		Eboot	Ethernet bootloader for wince, support downloading image through USB device port
	Driver	Serial device	Three serial ports (Provide source code)
		10M/100M Ethernet	DM9000 (Provide source code)
		USB OHCI	(Provide source code)
		USB Device	(Provide source code)
		RTC	(Provide source code)
		Buttons	User buttons (Provide source code)
		LCD	(Provide source code)
		Audio	UDA1341 (Provide source code)
		SD/MMC card	(Provide source code)

General Description

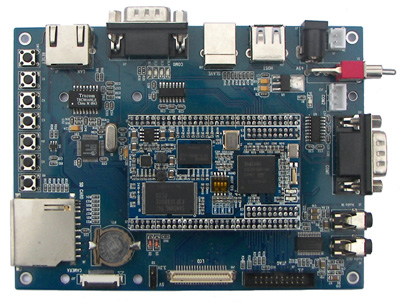

 SBC2416-I is a highly integrated single board computer, It consists of a CPU board and an expansion board. The Mini2416-I CPU board is mounted onto the expansion board through two 2.0mm pitch 2*42-pin dip connectors.

Its CPU employs 400MHz Samsung S3C2416x which is a 32/16-bit RISC cost-effective, low power, high performance micro-processor solution for general applications including the GPS Navigation and Mobile Phone markets, featuring an upgrade to the ARM926EJ core, the integration of a 2D Graphics Accelerator, an added low power mode, as well as embedded internal ROM/RAM for secure boot, moviNAND booting and low power audio decoding. The SBC2416-I provides multiple memory modes, i.e., 64MB SDRAM, 128MB NANDFLASH, SD card interface, USB interface. It also provides multiple communication interface modes, i.e., 10/100M Ethernet, 3-channel serial port, 1-channel USB Host and 1-channel USB Device. Diverse memory modes and communication modes provide user with more flexible applications for the development.

The board is capable of supporting for WindowsCE 5.0 operating system.  provides the software BSP along with documents to help customer start with their development quickly.

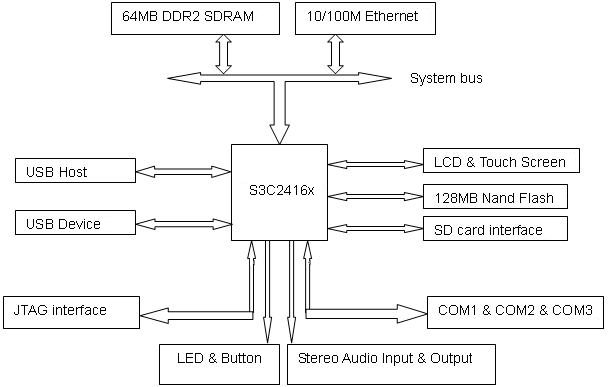

Function Block Diagram

Order Information
Item	S3C2416SBC
Hardware	One CPU board and base board One A/B type USB cable One RS232 serial cable One cross Ethernet cable One JTAG cable One 2GB SD card One 5V Power adapter 4.3"/7"TFT LCD (optional, including touch screen) Remark: 4.3”LCD (resolution: 480*272), 7"LCD (resolution: 800*480)
Software and Documents	Documents (user manual, schematic drawing in PDF format, Datasheet) WinCE.net 5.0 BSP
Price	without LCD	US$169
	with 4.3"LCD	US$259
	with 7"LCD	US$359
