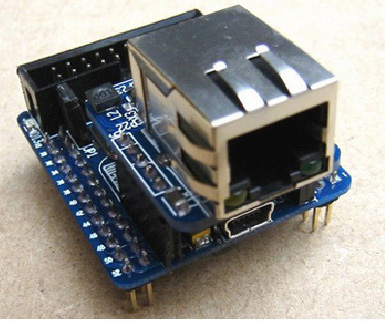

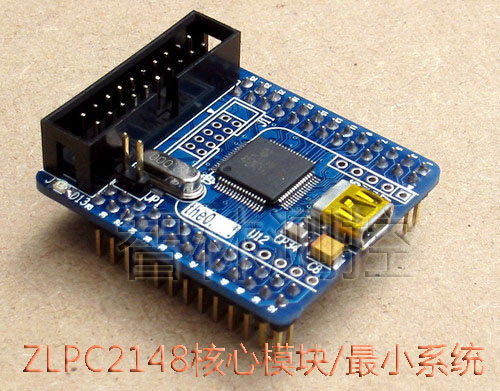

Tiny ARM board
1, CPU:LPC2148.
FLSAH:512KB
RAM:32KB+8K share with USB DMA
LQFP64
-40 to -+85 centigrade
2, 20pin ARM JTAG 2x10
3, extend all IO
4, on board 3.3V LDO 1117, max to 800mA
5, USB power: +5VDC
6, USB
7, 12Mhz and 32.768Khz
8, PCB size: 44x37mm

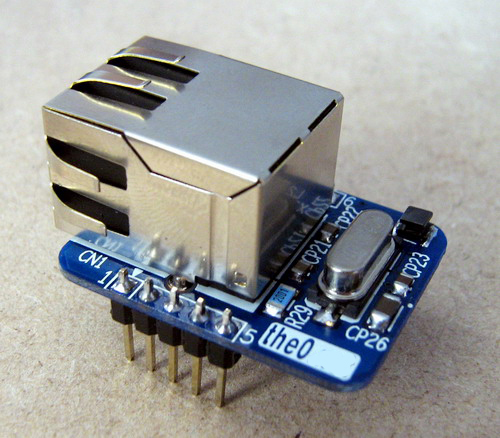

Network module
1, MicroChip ENC28J60, QFN28
2, IEEE 802.3 compliant Ethernet controller, with MAC and 10 BASE-T PHY
3, half and full duplex
4, SPI high to 20MHZ clock, 10 Mb/s
5, 100mil 2*5 socket
6, RJ45(ZJ6HC002A)
7, Link and Activity LED's
8, +3.3V，compliant to 5V
9, 25Mhz
10, PCB size: 30mm x 23mm x 23mm
Source code:
Sample web server
Order
Please contact us for order and payment information.
Sample price is exactly announced hereby above. ONLY ask for quotation when order quantity > 3pcs.
Parts of product, like core module, SBC, stamp, daughter card, single board(without LCD), motherboard, baseboard, LCD etc, sell seperately, email us for quatation.
Main information has been shown hereby above, detailed documents ONLY provided after your purchase.
If you have questions please send email asking us or find what our customers say and discuss in forum.
We provide technical support!
Our mission is to provide quick start and easy use embedded platforms for maximize customers productivity. If you find any platform more competitive than ours, please do let us know. We can improve our product for you. |
