Android S5PC100 Dev Kit

Model Standard
Vendor Quickembed Trakmark
In Stock Yes Lead Time  3 days
Promotion Update Time
Voucher Limit
Product Name Android S5PC100 Dev Kit
Product ID 2010022211305525 Warranty  1 Year
Price US$299/unit

Shipping Fee and tax not included.



Product Introduce:
Samsung Cortex-A8 833Mhz board ARM V7 SoC S5PC100,512MB DDR2.
Product Detail:

S5PC100 Highlights



 • Samsung Cortex-A8 833Mhz ARM V7 SoC S5PC100

 • 512MB DDR2 memory

 • 3.5-inch capacitive touch screen display

 • 720p HD video via HDMI output

 • WiFi, Bluetooth

 • Accelerometer

 • Android2.1

 • Full hardware schematics

 • Full source code



S5PC100 Description



S5PC100 Evaluation Board is a compact board using S5PC100 microprocessor. It takes full features of this processor and supports 512MB DDR2 memory. The board has exposed many other hardware interfaces including RS232 serial port, LCD/TSP, HDMI, SD/MMC, TF-card interface, keyboard, WiFi, The board boot the system from SD card. It is able to support Android OS and provided the source code for the Linux2.6.29 BSP and Android 1.5-R3.

S5PC100 Evaluation Kit includes the S5PC100 evaluation board and all necessary accessories to help users start their design of multimedia applications. The board is preloaded with Android OS in SD card. User can display the subsystem using a 3.5" TFT LCD and Touch screen. Along with the kit, we provide user manual, schematic drawing and datasheet documents to help customers better understand and use the kit.

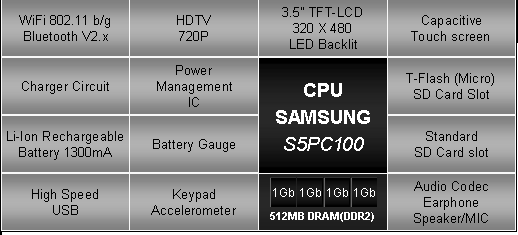

S5PC100 Block diagram





S5PC100 Hardware



 • CortexA8 based CPU Subsystem with NEON, Samsung ARM A8 S5PC100, up to 833MHz Operating Frequency

 • 32/32KB I/D Cache, 256KB L2 Cache

 • Operating System: Android1.5TM

 • Memory: ROM-2GB(TFLASH), RAM-512MB(DDR2)

 • Storage & Expansion Slot

    Standard SD/SDHC card (up to 32GB)

    Standard

 • Connectivity: Bluetooth 2.X, WIFI IEEE 802.11b/g

 • Input and Output:

    3.5mm audio jack

    HDMI type-C Connector

    TTA-20 (USB, Charging, Line-out/in)

 • Audio: AAC,AAC+, MP3

 • Video: MP4, H.264

 • Display:

    3.5-Inch TFT-LCD capacitive touch

    320 x 480 (HVGA) resolution

 • Device Control

    4way DPAD

    8keys (Home, Menu, Back, Enter, A, B, X, Y)

    Capacitive Touch volume

 • Sensor

    Accelerometer sensor

 Battery

    Detachable Li-Ion battery 1300 mA

 • Sensor

    Accelerometer sensor

 • Weight

    About 165g (with battery)

 • Size

    About (LxWxT) 150 x 76 x 16 (mm)

 • 64-bit Multi-layer bus architecture

 • Advanced power management for mobile applications

 • ROM for secure booting and RAM for security function

 • 8-bit ITU 601/656 Camera Interface up to 8M pixel for scaled and 16M pixel for un-scaled resolution

 • Multi Format CODEC provides encoding and decoding of MPEG-4/H.263/H.264up to 30fps@HD(720p) and decoding of MPEG-2/VC1/Divx/Xvid video up to 30fps@HD(720p)

 • JPEG codec support up to 30Mpixels/s

 • 3D Graphics Acceleration with Programmable Shaderup to 10M triangles/s (Transform only)

 • 2D Graphics Acceleration with BitBlt and Rotation, up to 40Mpixels/s

 1/2/4/8 bpp palletized or 8/16/24bpp non-palletized Color-TFT support up to 2048x2048

 • TV-out for NTSC and PAL mode and HDMI 1.2 interface support with PHY

 • MIPI-HSI, MIPI-DSI and MIPI-CSI interface support

 • 1-channel AC-97 audio codec interface, 2-ch PCM serial audio interface, and 3-channel 24-bit I2Sinterface support (5.1ch support)

 • 2-channel S/PDIF interface support for digital audio

 • 2-channel I2C interface (up to 400KHz) support including 1-channel for HDMI

 • 3-channel HS-SPI, up to 52Mbps

 • 4-channel UART including 4Mbps port for Bluetooth 2.0 and IrDA port for SIR/MIR/FIR

 • On-chip USB 2.0 OTG supporting high speed (480Mbps, on-chip transceiver)

 • On-chip USB 1.1 Host supporting full speed (12Mbps, on-chip transceiver)

 • Asynchronous direct Modem Interface support including 16KB DPRAM

 • 3-channel SD/SDIO/HS-MMC interface support including CE-ATA

 • CF version 3.0 interface support for HDD

 • 24-channel DMA controller

 • Support 8x8 key matrix

 • 10-ch 12-bit multiplexed ADC

 • 2-ch CAN interface

 • Configurable GPIOs

 • Real time clock, PLL, timer with PWM and watch dog timer

 • SRAM/ROM/NOR/NAND Interface with x8 or x16 data bus

 • Muxed OneNAND Interface with x16 data bus

 • 1-port Mobile DDR Interface with x32 data bus (up to 333Mbps/pin DDR)

 • 1-port DDR2 interface with x16 or x32 data bus (333Mbps/pin DDR)

 • 1-port LPDDR2 interface (up to 333Mbps/pin DDR)

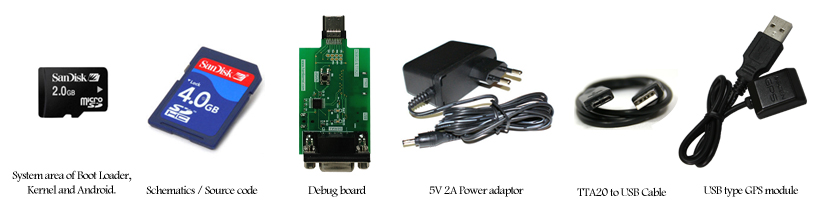

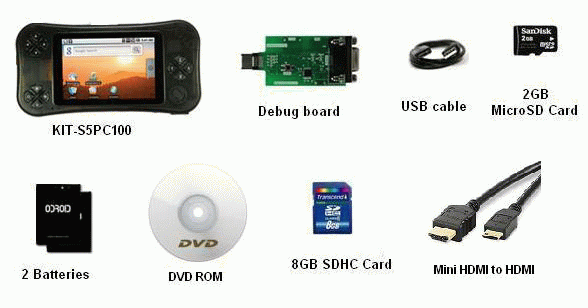

S5PC100 Dev Kit Lite Contents, Price 199USD.  No stock, no more produce.



 • 1 S5PC100 board

 • 1 USB cable

 • 1 Battery

 • 2GB MicroSD card



S5PC100 Dev Kit Standard Contents, Price 349USD. No stock, no more produce.



 • 1 S5PC100 board

 • 1 Debug board

 • 1 USB cable

 • 1 Mini HDMI to HDMI cable

 • 2 Batteries

 • 1 Schematics and the Android source code

 • 2GB MicroSD card

 • 8GB SDHC Card




Application Developer Edition Premium, Price 299USD

Platform Developer Edition Standard, schematics included, Price 399USD


Platform Developer Edition Complete, Price 549USD

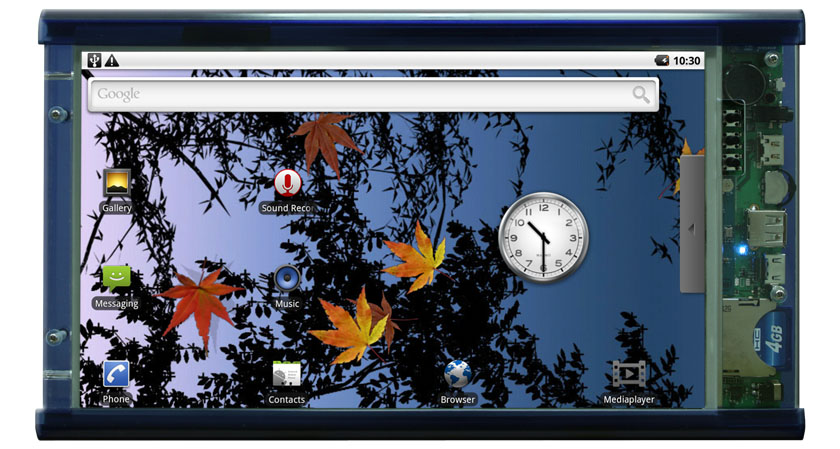

WEB BROWSING

View whole web page in portrait or landscape through 10.1 inch 1360x768 resolution LCD. Capacitive touch screen provides easy of use with your finger tips. Enjoy wireless network everywhere through built-in WiFi/Bluetooth

FULL HD 1080P VIDEO HDMI OUT

Play back full HD 1080p videos through HDTV. You can even turn off the screen of ODROID-T when it is connected to HDTV. Standard HDMI1.3 port is embedded.

GPS

GPS module is connected through USB2.1 HS Host, which enables you to study GPS Navigation devices or applications.

E-Book Reader

10.1 inch 1360x768 resolution LCD performs E-Book readable with big size text.

3D Gallery

Insert SD card from your camera. It is easy to check and share your photos on big screen LCD.

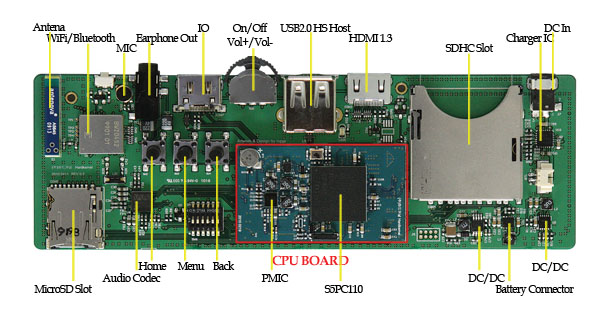

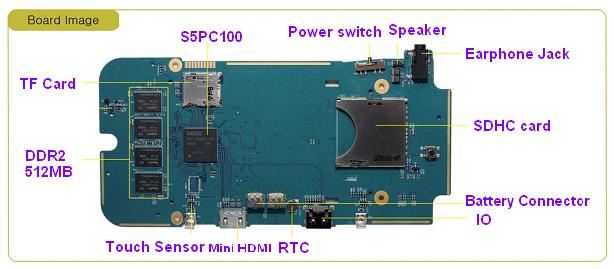

FRONT side

CPU Board : CPU, Memory, Power management. Connected to main board by board to board connector

USB2.1 HS Host : Connect various external accessories such as GPS, camera, keyboard, external HDD, etc

MicroSD Card Slot : 2Gbyte T-flash(removable) memory card for system area of Boot Loader, Kernel and Android.

SDHC Card Slot : Use your own SD card for user storage

Mini HDMI : Standard type-C HDTV, support up to 1920 x 1080 resolution

IO(TTA20) : USB, Battery charging and Serial port for system monitoring

WiFi/BT Combo Module : Marvell 8686 & CSR BC4-ROM

Audio CODEC : WM8991 is a highly integrated low power hi-fi CODEC from Wolfson

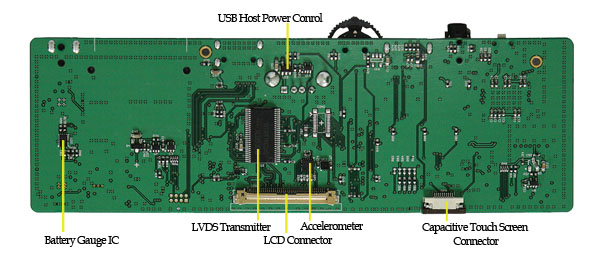

BACK side

Acceleration Sensor: Digital 3-axial acceleration sensor from Bosch Sensortec

PMIC : contains 3 Step-down DC/DCs and 9 LODs.

LVDS transmitter : converts RGB data into LVDS(Low Voltage Differential Signaling) data streams.

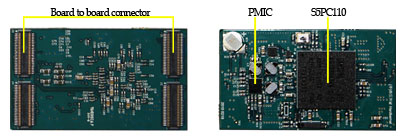

CPU Board

CPU : Samsung S5PC110 Cortex-A8 1Ghz with 512KB L2 cache, 3D Accelerator : SGX540 (up to 20M triangles/s and 1000M pixels/s)

Memory : OneNAND 512MB Mobile DDR 400Mhz data rate

PMIC : contains 3 Step-down DC/DCs and 9

LODs.

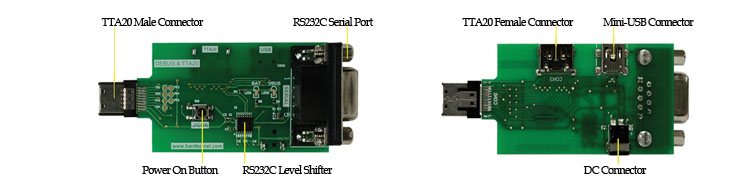

Debug board

TTA20-Male connector : Connect to I/O port of Odroid-T.

RS232C Serial Port : Connect to Host PC RS232C Serial Port via cable.

SPECIFICATIONS

Processor | Samsung S5PC110 Cortex-A8 1Ghz with 512KB L2 cache

3D Accelerator | SGX540 (up to 20M triangles/s and 1000M pixels/s)

Memory | 512MB Mobile DDR 400Mhz data rate

Flash | OneNAND 512MB

Micro-SD slot (2GB bundle)
Standard SDHC slot


Display | 10.1-inch, 1360 x 768 LVDS interface with capacitive touch screen.

Video | supports 1080p via HDMI cable (H.264+AAC based MP4 container format)

Video Out | mini-HDMI connector with SPDIF audio

Audio | Built-in speaker and microphone, standard 3.5mm headphone jack

I/O | USB 2.0 HS Device for ADB/Mass storage, UART/JTAG for development

DC Jack | 5V/2A power

USB | USB 2.0 HS Host (standard A type connector)

WiFi | 802.11 b/g

Bluetooth | 2.0 + EDR

Other Features | 3-axis accelerometer, External GPS, Geo magnetic field sensor

System Software | u-boot 1.3.4, Kernel 2.6.29, Android Eclair 2.1

Dimensions | 275 x 155 x 18 mm

Weight | 620g(with battery)

Battery | 6000 mAH rechargeable Lithium-Polymer


DEBUG BOARD

TTA20-Male Connector | Connect to I/O port of Odroid-T.

RS232C Serial Port | Connect to Host PC RS232C Serial Port via cable.

Power On Button | Turn on Odroid-T.

DC Connector | External power supply connection

TTA20-Female Connector | External power supply connection

Mini-B USB Connector | Connect Odroid-T to host PC
