Cortex-A8 ARM Emulator

Model Standard
Vendor Quickembed Trakmark
In Stock Yes Lead Time  3 days
Promotion Update Time
Voucher Limit

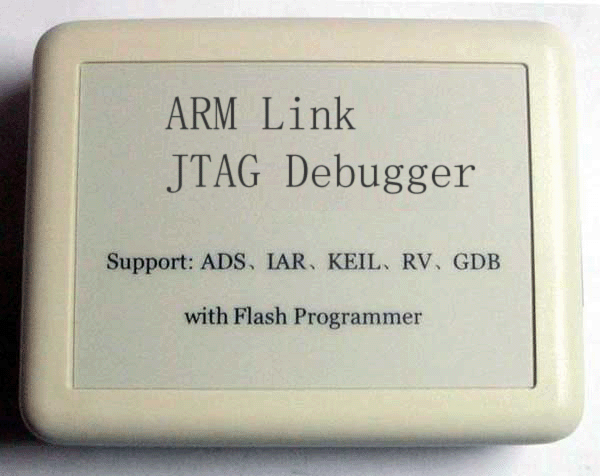

Product Name Cortex-A8 ARM Emulator
Product ID 2009072015160462 Warranty  1 Year
Price US$299/unit

Shipping Fee and tax not included.


Product Introduce:
Supports Cortex-A8/ARM1176 /ARM1136and ARM920T core processors,
such as S3C6400/S3C6410/i.MX515 and OMAP3530, debugging and real-time hardware breakpoints.
Product Detail:

1.        Support USB2.0 standard interface, no external power supply required, low power consumption

2.        Support wide target voltage (0.5-5.0v)

3.        Support standard Jtag cable, stable performance

4.        Support Windows XP/Windows 2000 system

5.        Support AXD debugger software, easy to use

6.        Support for hardware breakpoints and unlimited software breakpoints

7.        Support for debugging multi-core processors at the same time the number of cores

8.        Support for source-level debugger

9.        To support the ARM model

10.    CP15 including support includes access to all the co-processor

11.    Support DCC mode

12.    Support Exception Catch

13.    Based debugger RDI1.5.1 agreement, including the ADS 1.2, RVDS2.2, etc.

14.    USB2.0 HighSpeed interface



Support the Core

* Cortex-A8

* ARM1176JZF-S

* ARM1136JZF-S

* ARM920T

* ARM926EJ-S

* ARM966E-S

Package Include

One USB JTAG Emulator

One USB cable

One JTAG cable

Software download link; with user manual.

Order Now

Price US$ Quantity Option requirement:
Note: When total value exceeds 500USD, we declare 500USD when shipping, avoiding many issues.
Contact us if you have other require on this.
Select Shipping Rate here. Add "Combined Shipping" when order more than one kit.

Shipping Service


Please contact us if you have any question for order and payment.
Sample price is exactly announced hereby above.
ONLY ask for quotation when order quantity > 3pcs.
Parts of product, like core module, SBC, stamp, daughter card, single board(without LCD), motherboard, baseboard, LCD etc, sell seperately, email us for quatation.

Main information has been shown hereby above, detailed documents ONLY provided after your purchase.
If you have questions please send email asking us.

We provide technical support
Our delivery has mass producing quality assurance. We warrants our products against manufacturing defects for a period of one year from date of shipment to the original purchaser, and offers one year of software updates to registered customers free of charge.
