CCD module Price 49USD
designed for OMAP3530 Evaluation Board with standard 720*576 PAL resolution. It support analog camera with BNC connector, provides driver source code.

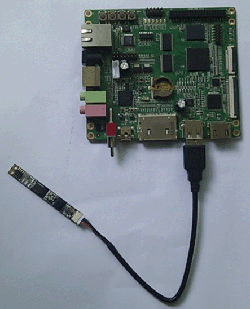

USB Camera Digital module Price 49USD
USB 2.0 Host port. CMOS image sensor 1.3Mega Pixel Digital Camera.

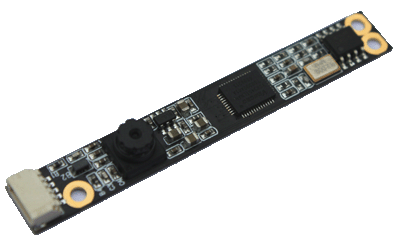

USB digital camera module
Features
- Dimensions: 8mm by 60mm
- Working temperature: -30~70°C
- USB2.0 Hign-speed Host port
- Sensor Resolution: 1304(H) x 1036(V), SXGA
- Unit pixel size: 2.0um x 2.0um
- Power: USB Bus Power
- Power Consumption:
- Suspend: 50mA ± 5mA
- Operating: 100mA ± 10mA @ 640x480 / 15fps
- 1.3Mega Pixel CMOS image sensor
- Max Frame Rate: 15fps SXGA YUV format
- Capture pictures at JPEG format
- Support for Linux and WinCE OS
