FingerPrint access control unit

Model Standard
Vendor Quickembed Trakmark
In Stock Yes Lead Time  3 days
Promotion Update Time
Voucher Limit
Product Name FingerPrint access control unit
Product ID 2009100819312389 Warranty  1 Year
Price US$99.00/unit

Shipping Fee and tax not included.

Turn your prospective idea into practical product real profit in 6 months.
Product Introduce:
suitable for office, factory, hotel, hospital, bank ect
Product Detail:

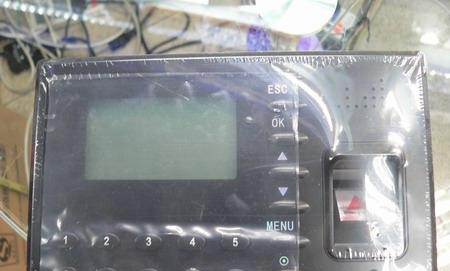

Type 1.  stand alone fingerprint monitor device, Price 99USD

Product Introduction

FingerPrint register access control unit. Fastest fingerprint-matching algorithm and multispectral sensor technology maintains its performance in any environment; rain, snow, cold, dry, dusty or hot. High-quality images are captured by multispectral sensor even when fingerprint ridges are hard to distinguish due to genetics, age, dirt, finger placement or environmental conditions.



Benefits:

Built in 32bit fingerprint embedded standalone module, it is easy to integrate with various systems .

Sensor window cotton improving image quality, accepts dry, wet fingers.

Works in any environment-rain, snow, cold, dry, dusty or hot.

CMOS automated exposure and intelligent compensation improved image quality.

Adjusting image distortion, assure fingerprint matching consistency.

Accept ODM or OEM, providing system analysis, mould-making, circuit design, producing-assembly, package design, etc, linear service.



Technical Specilication

· Size:185L123W43(H)mm

· User Capacity: 1500 (1:N) / 5000 (1:1)

· Transaction Storage :50000

· Hardware platform: 32bit Microprocessor

· Memory: 8M Flash, 32M SRAM

· Display : Graphic LCD

· Fingerprint sensor Multispectral Image Sensor

· Communications:RS232, RS485, TCP/IP, Wiegand

· USB Memory Slot : USB HOST

· Power consumption : 12V DC

· Idle current: 500 mA

· Operating current: 800 mA

· Relay Output: 3A

· Operates stand-alone without a computer

· Identification time :<=2s

· FAR: <= 0.0001%

· FRR: <= 1%

· Operating Temperature : 0°C - 45°C

· Operating Humidity : 20%-80%

· Language: Multi-language, English, French, Spanish, Portuguese

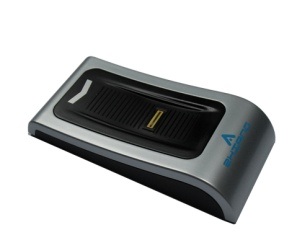

Type 2.1 MoveRF fingerprint capture module, price 69USD.

Type 2.2, MoveRF fingerprint capture device. price 79USD.

Specifications:
Specifications Name: Value Fingerprint
Sensor: RF Principles of dermal fingerprint
Sensor detection capabilities: detection of leather with the ability to fingerprint
Capacity: 162 (may be increased to 930)
False Accept Rate (FAR): 0.008% (security level 3 pm)
False Reject Rate (FRR): 0.005% (security level is 3)
Average matching speed: 1 second
Matching: matching methods: (1:1)
Search methods: (1: N)
Characteristics of documents: 256 bytes
Template file: 512 bytes
Security level: 5 (from low to high: 1,2,3,4,5)
Antistatic ability: 15KV
 High strength anti-wear: 1 million
Working Environment: Temperature: -20 ℃ - +65 ℃
Relative Humidity: 40% RH-85% RH (no condensation)
Storage Environment: Temperature: -40 ℃ - +85 ℃
Relative humidity: <85% H (without Gel )
Host computer interface: UART (TTL logic level) or USB1.1
Communication baud rate (UART): (9600 * N) bps where N = 1 ~ 12 (default value of N = 6, that is 51600bps)
Supply voltage: DC3.6 ~ 6.0V
Power supply current:
Operating current: 100mA (typical)
Peak Current: 150mA
Dimensions (L * W * H):
Split: Module: 30 * 22 * 1mm
Fingerprint sensor: 20 * 17mm

Features:
1, finger flexibility to adapt to the prevailing conditions, whether dry fingers, wet fingers, light texture fingerprints, old fingers and so have high recognition rate.
2, automatically end image acquisition, and image quality is getting better.
3, strong security fingerprint, fingerprint sensor, the recognition principle only to the human dermal skin reactions, a fundamental question to eliminate the artificial fingerprint
4, anti-static capability: from static electricity in dry areas Sao very suitable for easy
5, Wide Temperature Range: for especially cold or especially hot areas
6, slim volume: a variety of end products can be embedded into the main application areas: can be embedded in a variety of end products, such as: access control, attendance, safe, car door locks

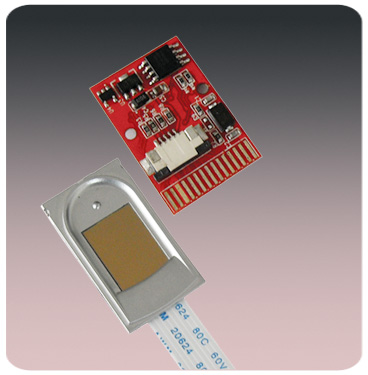

Type 3.1 capacitive fingerprint capture module, price 79USD.



Type 3.2 capacitive fingerprint capture device, price 89USD.

Product Description:
Functional: independently fingerprint, fingerprint registration, fingerprint matching and fingerprint search. Security is good: reflective sensor detection technology, live fingerprint detection function, with pairs of fingerprints, false fingerprint recognition.
Adaptability: algorithm performance, various types of fingerprints are extremely adaptable, such as dry fingers, wet fingers, light texture finger and so has a very high recognition rate and a good correction, fault tolerance
Antistatic ability: antistatic ability, dry and easy on the environment, especially for the area from the static. Application development is simple: the development can provide the control instructions according to their own development of fingerprint applications, without the need to possess professional knowledge of fingerprint identification.
Small size: the thickness of a small sensor, small size, flexibility in size-constrained embedded in various products.
 Ease of use and strong: a large area of fingerprint area, touch the fingerprint collection process, easy to use.
 Data Encryption: secure encrypted storage and encrypted transmission, algorithms meet the relevant safety standards
Performance indicators:
Fingerprint Sensor type: Capacitive
Detection Technology: reflective sensor detection technology, with live fingerprint detection feature
High strength anti-wear: 1 million
Anti-static index: ± 15KV
Fingerprint Total: 162 (may be increased to 930)
Work Voltage: DC3.6-6.0v
Operating current: 100 ma
Peak current: 150mA
Input fingerprint image time: <0.5 seconds
False Accept Rate (FAR): <0.008% (security level is 3)
False Reject Rate (FAR): < 0.005% (safety grade 3)
compared time: ≤ 1秒
Authentication: Supports fingerprint authentication (1:1) and fingerprint search (1:n)
Characteristics of file: 256 byte
Template file: 512 bytes
Security rating: 5 (from low to high: 1,2,3,4, 5)
Working environment: Temperature: -20℃ ~ +65℃
 Relative Humidity: 40% RH ~ 85% RH (no condensation)
Storage Environment: Temperature: -40℃ ~ +85℃
Relative humidity: <85% H (without condensation)
On the seat interface: supports UART (TTL logic level) or USB1.1
Communication baud rate (UART): (9600 * N) bps where N = 1 ~ 12 (default value of N = 6, that is 57600bps)
Dimensions (L * W * H):
Split: Module: 30 * 22 * 1mm
Fingerprint sensor: 20 * 17mm

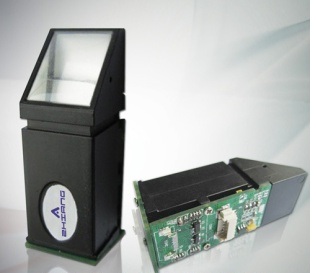

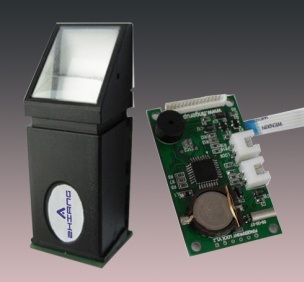

Type 4.1 cmos fingerprint capture module, price 49USD.
Type 4.2 lowend cmos fingerprint capture module, price 39USD.
Type 4.3 highend cmos fingerprint capture module, price 199USD.


Technical Specilication for type4.1

Power supply: DC 3.6 ~ 6.0V
Working Current: 100mA (typical)
Peak Current: 150mA
Scan fingerprint image time: <0.5 second
Window size: 14 × 18mm
Compared to the way (1:1)
Search method (1: n)
Profiles: 256-byte
Template file: 512
Storage capacity: 900
Safety Level: 5 (from low to high: 1,2,3,4,5)
False Accept Rate (FAR): <0.001% (security level is 3)
False Reject Rate (FAR): <0.1% (security level is 3)
Search time: <1.0 seconds (1:1000, the mean)
PC Interface: UART (TTL logic level) or USB1.1 communication baud rate (UART): (9600 × N) bps where N = 1 ~ 12 (default value of N = 6, that is 57600bps)
Working environment: Temperature: -20 ° C to +65 ° C
Relative Humidity: 40% RH-85% RH (no condensation)
Storage circumstance: Temperature: -40 ° C to +85 ° C
Relative humidity: <85% H (without condensation)
Split: module: 28 × 19 × 8.5mm
Fingerprint sensor: 56 × 20 × 21.5mm



Type 2 - 4, Character:
UART TTL COM port.
idea for mcu or arm system.
also it support USB port if you want to use it on PC.
provide SDK for develop your application.


Online Order Now! Global Shipping in 2 days!


We accept online order and ship globally, our online order system will tell shipping fee according to your address, and automaticly generate PI Invoice to you.
Please send email to us if you have any question for this product, or want product document in more detail, or question for order or payment or shipping. Contact information is at the bottom of the page.
Sample price is announced hereby above. Ask for quotation when order quantity > 3pcs.
Parts of product, like core module, SBC, stamp, daughter card, single board(without LCD), motherboard, baseboard, LCD, sell seperately, email us for quatation.
find gps,gprs,wifi,camera etc in
modules and bluetooth,485,can etc in accessories, or enclosures, jlink v8, ulink, openjtag etc tools.
We are now offer
Capacitive Touch Panel for all of our ARM platforms.


Product Warranty and Technical Support.
Our delivery has mass producing quality assurance. We warrants our products against manufacturing defects for a period of one year from date of shipment to the original purchaser, and offers software updates lifetime to registered customers free of charge. We have an experts team to provide technical support.
We have been running 8 years, this is our license from Chinese government website:
http://www.sgs.gov.cn/LicenceView/Id=20120530152953117
We have served 1000+ customers from 100+ countries all over the world, Please find a list of part of our customers here:
http://www.quickembed.com/Tools/Shop/Customer/Index.html
We can provide contact if you want a reference.
We are looking for sell/retail/ditribute/channel partners in all over the world.

You are encouraged to share your information in the forum, share your business information, share your success, it will get you more business and success!
If you need some partner, technical, hardware, software, marketing, channel, sales, just post your message on the forum, because someone in the world may be finding you!
Our world and technology is changing and growing so fast that no one no single company can do all work, clever people can get information from the web and try to make it but will take a lot time to learn, we need cooperation!
Promote your product in the forum, or just an idea, don't be afraid other will copy, there are similar products and ideas all over the world, the only difference is who will make it real in a right time in success!
If you want more formal, list your product in our web catalog, to promote it to all over world, we are open, please send email to us.
We can build a prototype sample very fast, for you, to demonstrate, to your customer.
A demo is much more powerful than a thousand words!
It will save you a lot of valuable time!
Make a concrete step from good idea to real success!
We help you succeed, providing ARM Embedded Quick Demo.

ODM/OEM Service


Layout, for special defined interface and resize the board for your requirements.
Product prototyping, sourcing accessories for your product requirements.
Recommend GPS module, GSM/GPRS module with communication software.
Software Developing.
Sourcing solution and turn key to you.

You might have interest to know what products this board makes, please send us an email to know more product design cases.  Embedded pc computer system has broad usge, some examples:
QButton, world first post-it bluetooth sensor, open data, customize for your usage.

Popular bluetooth v4.0 ble sensor tag, smart devices, wearable electronic computer.

Palm size desktop computer.

U-disk size computer


Android 4.0 5inch 7inch capacitive touch pad


9D position pose system digital compass
GPS, Compass and accelerator in one tiny module.

GPS GPRS LBS solution.
Navigate Locate Track Solution, Location Based Service


Robot Motor Medical Testing System
One motor control board controlling 9 motors at the same time
Robot arm move and grab.


12" to 15" size multimedia or HMI solution, fixed on wall or desk or large vehicle:

Backside:

10" solution, fixed in car:

7" solution, fixed in car:
more 7inch cases here:
http://www.quickembed.com/Tools/Shop/Solution/201001/67.html



Using SBC is as easy as 1,2,3; simply prototype and test your development using a suitable SBC, then design your custom connector board and finally build your product.

The advantage of SBC is that when you define a new product, you have only small change on baseboard/motherboard, no change on SBC/daughter board, it saves great effort, and save much expense as the SBC is big lots produced while baseboard can be produced in small lots,  also this helps improving the quality of your products.
Read more about arm board customize design odm service.
Read more about arm linux driver and application software develope.

Our mission is to provide quick start and easy use embedded platforms for maximize customers productivity. If you find any platform more competitive than ours, please do let us know. We can improve our product for you.
Those who want to list your product here in this web and sell to worldwide customers, please contact us.

-- Stay Hungry. Stay Foolish. Memory of Steve Jobs.
-- Dream bigger, Love Deeper, Live Longer! :-)





Search Similar or Related Products:
Customers Feedback:
Contact Us Instant: Skype: Phone Call: Tel: +86-2l-228l84l9. Email: quickembed@gmail.com, support@quickembed.com,
Welcome to Visit Us, Address: Jianchuan Road No.951, A409, Cangyuan Sci&Tech Park, Shanghai, China.

Copyright: QuickEmbed Technology Co.,Ltd., 2002-2014
