1, 32KB FLASH Memory
2, 8KB SRAM
3, 5V DC or USB power
4, USB 2.0 Device, support USB bootloader download
5, I2C(AT24C16 and LM75)
6, AD
7, 1 RS232
8, 2 keys, 8 LEDs, 2 buttons-Reset and BOOT
9, 42 GPIO
10, 4 Timers/counters
11, 18pin LCD (LCD12232,TFT LCD 320X240)
12, 20pin JTAG, (only for 10pin SWD)
13, 100mm* 76mm
Source code:
* LCD122 X 32 display sample (include animation)
* ADC (AD for temperature)
* DEBUG
* Mass_Storage
* USB HID
* USB UART
* USB download
* UART
* I2C read and write, AT24C16, LM75
* GPIO control, LED, KEY
* ucosii_2.86 for LPC1343

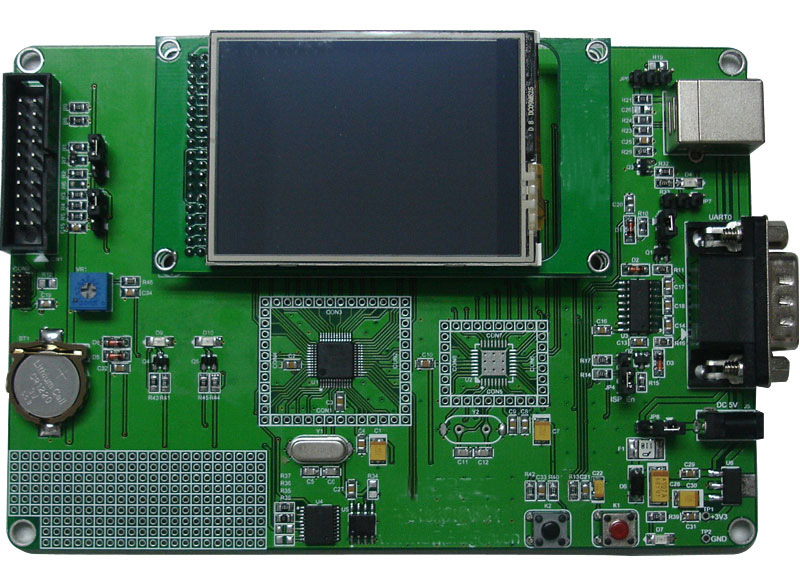

Add 50USD for 2.4 inch 320X240 TFT touch screen version:
Main information of above product has been shown hereby above, detailed documents ONLY provided after your purchase.
If you have questions please send email asking us.
Online Order and pay by Paypal Now!
Online Order with more payment options.
Please contact us if you have any question for order and payment.
Sample price is exactly announced hereby above.
ONLY ask for quotation when order quantity > 3pcs.
Parts of product, like core module, SBC, stamp, daughter card, single board(without LCD), motherboard, baseboard, LCD etc, sell seperately, email us for quatation.
