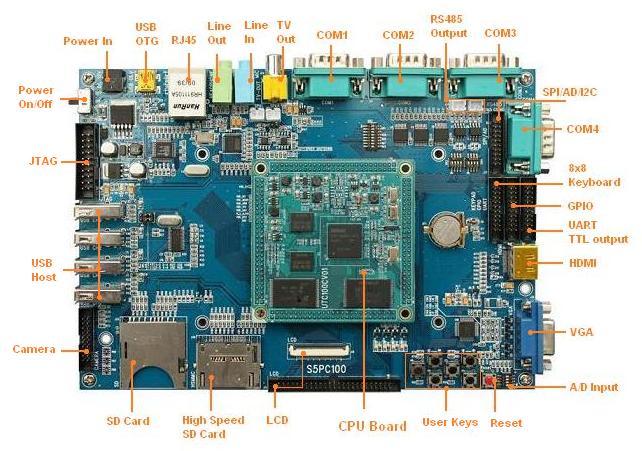

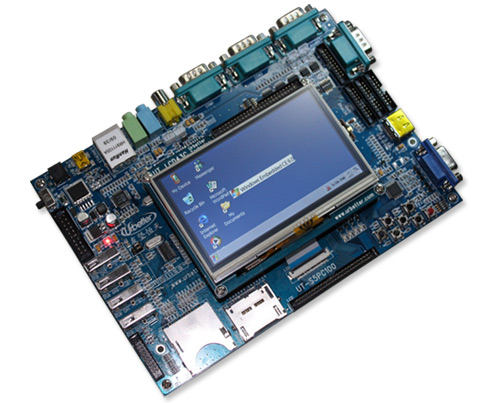

QE-S5PC100-DVK Highlights
. Modular Design: carrier board-200mm x 140mm; CPU board- 70mm x 70mm
. WinCE6.0, Android2.1 are available for the Kit
. Processor: Samsung S5PC100A80-LA40, ARM Cortex-A8, 833MHz System Clock.
. Samsung K4X1G163GE, Mobile DDR, 256M Bytes
. Samsung K9F2G08,256M Bytes SLC Nand Flash Memory
. AMD AM29LV160, 2M Bytes, Nor Flash
. 24bit LCD, two kinds of LCD/Touch Screen interface including 4-wire touch Screen.
Supporting 3.5" LCD, 4.3"LCD,7" LCD, 10.4" and 12.1" TFT/LVDS LCD
. Many modules are available for your choice- GPS, WIFI, Camera, Bluetooth, USB 3G Modem, USB HUB and Matrix Keyboard Module.
. 4 USB Host 1.1 interfaces
. One High-speed USB2.0 OTG port (Mini USB type interface)
. One TVOUT
. One VGA interface
. 2 SPI, 2 A/D, 2 I2C
. One audio input interface, One 2-channel audio output interface (3.5mm audio jack), two speaker pin header
. One 10/100M Ethernet interface (RJ45)
. Four serial ports (COM1,COM2 are 5-wire, COM3,COM4 are 3-wire , the four ports not only can be output from DB9
but not only can output as TTL level by pin header, COM3 and COM4 also can be RS485 output by pin header )
. SD/MMC interface (supports 3.3V and 1.8V logic voltage)
. One camera interfaces (20-pin pin header, supporting ITU BT 601/656 8bit)
. One 20-pin 2.54mm JTAG interface,
. 50-Pin GPIO connector, 50-Pin data and address BUS connector
. One 8*8 Keyboard interface
. Eight buttons (Reset, Boot, User defined, On/Off)
. Power supply: +12V

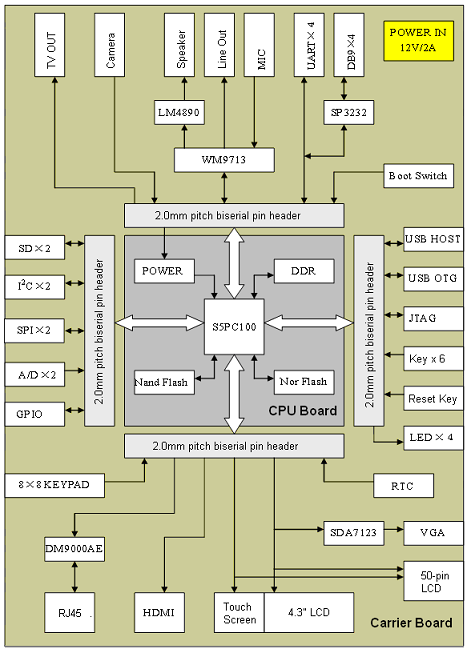

QE-S5PC100-DVK Evaluation Board is developed based on Samsung ARM Cortex-A8 S5PC100 Mobile Application Processor,operating up to 833MHz, which is designed to provide a cost-effective, low-power capabilities, high performance Application Processor solution for wireless commnication,personal navigation,camera,portable gaming,portable music/video player,mobile TV and PDA. High-quality video playback is fast becoming a must-have feature for smartphone, portable media players, GPS navigation units,and TV-enabled mobile devices. The S5PC100 processor features a built-in,720p multi format codec (MFC) video Engine which ensures smooth 30fps video encoding and playback at low power consumption,and supports three types of TV out interface (NTSC/PAL/HDMI). Products incorporating the S5PC100 will benefit from the rich video and multimedia functions which consumes very low power, enabling longer video playback time with a standard size battery.
Quickembed QE-S5PC100-DVK Evaluation Board takes full features of the processor by providing a complete set of common system peripherals, minimizing overall system costs and eliminating the need to configure additional componentsand. It supports 256MByte DDR SDRAM and 256MByte NAND Flash as well as high-speed USB2.0 OTG function. The board has exposed many other hardware interfaces including RS232 serial port, LCD/TSP, TVOUT,VGA,Ethernet, SD/MMC, GPIO, camera,SPI,I2C and HDMI. The board has two methods to boot the system from either SD card or NAND flash. WinCE6.0 and Android2.1 are coming with the board.
The kit includes the CPU Board and Carrier Board, LCD, Windows Embedded CE 6.0 or Android2.1 BSP, complete electronic documentation, schematics, demo applications, and third party Cross compilersand embedded development environments (DNW, MoviNAND_Fusing_Tool.exe, activesync,sdboot, TCPMP, USB Interface Driver and so on) for reducing your development time and quick tomarket.
Software:
|
OS |
Item |
Feature |
Description |
|
Android2.1 |
Bootloader |
Uboot-1.3.4 |
Main functions:
1. Supporting Nand Flash erase/write/read
2. Supporting USB download Image
3. Supporting print, set, save Environment Variables
4. Supporting memory’s contents display/compare/modify
5. Supporting bootm, bootargs setting |
|
USB Installer.bin |
Uboot boot process, download uboot by the process |
|
Image update |
Support updating image from SD card or USB |
|
Kernel and drivers |
Kernel version |
Linux 2.6.29 |
|
Drivers(source code) |
Serial ports, RTC, Ethernet, 3.5” ,4.3” 7” ,10.2” LCD, 10.4”(LVDS) and 12.1” including Touch Screen, MMC/SD/SDIO, USB Host, USB OTG, LEDs, AC97, Camera , GPS, High Speed SD card, USB Keyboard,3-axis accelerometer, VGA, HDMI, IIC,IIS,SPI, DMA, MFC, TVOUT, OpenGLES1.1 & 2.0, D3DM |
|
File System |
File System |
Yaffs File System |
|
Embedded GUI |
Android2.1 |
Support file browser, Mediaplayer, Calendar, time, counter, Touch Screen Calibration program, Plug-in manager. |
|
Network protocol
& application |
Network Protocol |
TCP/IP protocol, Telnet, FTP Client/server, boa web server |
|
Application |
Alarm Clock, Bluetooth chat, Browser, Gallery,Calculator,Camera, Phons, Email, Maps, ES File Explorer, Mediaplayer, Music, Picsay, ASTRO, |
|
Cross compiler Environment |
Arm-none-linux-gnueabi |
|
Debug Tools |
DNW, MoviNAND_Fusing_Tool.exe |
|
|
|
WinCE6.0 |
Bootloader |
Stepldr |
The final image is STEPLDR.nbo |
|
Eboot |
The final image is EBOOT.bin and EBOOT.nbo
Eboot main functions:
1. Ethernet download: Set static IP, HDCP gets Dynamic IP, Mac address setting, download kernel automatically by Ethernet when the system starts
2. USB download: update the image via USB OTG 2.0
3. Format Nand Flash
4. Format BinFS
5. Low-level Format
6. Set boot-up delayed time
7. Booting process bar |
|
C100_bll.uboot.bin |
Support updating image from SD card or USB |
|
System |
Drivers |
3.5” ,4.3”, 7”, 10.2”,and 10.4” LCD including Touch Screen, VGA, TVOUT,HDMI, LEDs |
|
SD card, High speed SD card, SPI, AC97, Camera, Ethernet, USB Host, USB OTG, Serial ports, RTC,GPS, WIFI,3G Module, IIC, JPEG,SD/MMC/SDIO, DMA, DrvLib, MFC, OpenGLES1.1 & 2.0, D3DM |
|
Application |
Software features |
Source code and test program for MPC, MPEG-4/H264/H263/VC-1, DirectorShow Filter, JPEG, OpenGL ES1.1 & 2.0 |
|
TCPMP Media Player supports MPEG-4/H263/H264/VC-1, avi/mp4/m4v, mov/3gp/flv/mpg, DIVX/XVID, supporting Audio decoding MP1/MP2/MP3/AC3/AAC |
|
Many Message Tools-Skypem, MSN, QQ, FFICE Tools-Word, Excel, PoewrPoint, PDF, txt |
|
.NET Compact Framework 3.5 |  CPU board sample price 199USD.Send email to us for batch order quotation.
Whole package 999USD . One ARM Cortex-A8 S5PC100 CPU board + baseboard
. One 4.3inch LCD
. One Serial cable (IDC10-to-DB9)
. One 12V@2A Power adapter
. One Touch Pen
. One USB cable
. One Cross Ethernet cable
. Download for WinCE 6.0 BSP, Android, Documents, tools, Schematic Drawing, datasheets.
Addional Modules Price
GPS 49USD
WIFI 49USD
Camera 49USD
AV in/out 99USD
Bluetooth 9USD
3G usb modem, TD-HSDPA&GSM（GPRS/EDGE) based on LC6311+ chiset, 99USD
Online Order Now! Global Shipping in 2 days!
We accept online order and ship globally, our online order system will tell shipping fee according to your address, and automaticly generate PI Invoice to you.
Please send email to us if you have any question for this product, or want product document in more detail, or question for order or payment or shipping. Contact information is at the bottom of the page.
Sample price is announced hereby above. Ask for quotation when order quantity > 3pcs.
Parts of product, like core module, SBC, stamp, daughter card, single board(without LCD), motherboard, baseboard, LCD, sell seperately, email us for quatation.
find gps,gprs,wifi,camera etc in modules and bluetooth,485,can etc in accessories, or enclosures, jlink v8, ulink, openjtag etc tools.
We are now offer Capacitive Touch Panel for all of our ARM platforms.
Product Warranty and Technical Support.
Our delivery has mass producing quality assurance. We warrants our products against manufacturing defects for a period of one year from date of shipment to the original purchaser, and offers software updates lifetime to registered customers free of charge. We have an experts team to provide technical support.
We have been running 8 years, this is our license from Chinese government website:
http://www.sgs.gov.cn/LicenceView/Id=20120530152953117
We have served 1000+ customers from 100+ countries all over the world, Please find a list of part of our customers here:
http://www.quickembed.com/Tools/Shop/Customer/Index.html
We can provide contact if you want a reference.
We are looking for sell/retail/ditribute/channel partners in all over the world.
You are encouraged to share your information in the forum, share your business information, share your success, it will get you more business and success!
If you need some partner, technical, hardware, software, marketing, channel, sales, just post your message on the forum, because someone in the world may be finding you!
Our world and technology is changing and growing so fast that no one no single company can do all work, clever people can get information from the web and try to make it but will take a lot time to learn, we need cooperation!
Promote your product in the forum, or just an idea, don't be afraid other will copy, there are similar products and ideas all over the world, the only difference is who will make it real in a right time in success!
If you want more formal, list your product in our web catalog, to promote it to all over world, we are open, please send email to us.
We can build a prototype sample very fast, for you, to demonstrate, to your customer.
A demo is much more powerful than a thousand words!
It will save you a lot of valuable time!
Make a concrete step from good idea to real success!
We help you succeed, providing ARM Embedded Quick Demo.
