ADI BlackFin BF5XX EZ-KIT

Model Standard
Vendor Quickembed Trakmark
In Stock Yes Lead Time  3 days
Promotion Update Time
Voucher Limit
Product Name ADI BlackFin BF5XX EZ-KIT
Product ID 2009072016353514 Warranty  1 Year
Price US$199.00/unit

Shipping Fee and tax not included.

Turn your prospective idea into practical product real profit in 6 months.
Product Introduce:
BF5xx EZ-KIT Develop Board supports all BF5xx core modules.
Product Detail:

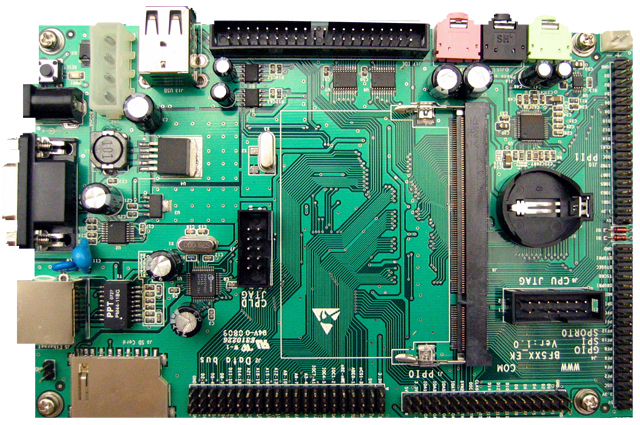

Baseboard, Price 199USD

1.        PPI, SPI, SPORT0, GPIO, Data Bus

2.        SD card (support SD, MICRO SD, TF)

3.        LAN (10M/100M)

4.        RS232 (DB9)

5.        USB: 2 (2.0 FULL SPEED HOST)

6.        IDE: 1 (3.5inch 40PIN)

7.        Audio: AC97 (WM9707) MIC, LINE IN, OUT, SPEAKER

8.        12 DC 800mA Power supply

9.        RTC

10.    Blackfin JTAG

11.    CPLD JTAG




CPU core modules:

BF531 400MHz Core Module, 99USD

RAM:64MB

NOR FLASH:2MB

NAND FALSH:128MB

BF533 400MHz Core Module, 119USD
CPU:BF531 400MHz

RAM:64MB

NOR FLASH:2MB

NAND FALSH:128MB


BF533 500MHz Core Module, 129USD
CPU:BF531 400MHz

RAM:64MB

NOR FLASH:2MB

NAND FALSH:128MB


BF561 500MHz Core Module, 189USD
CPU:BF531 400MHz

RAM:128MB

NOR FLASH:2MB

NAND FALSH:128MB

BF561 600MHz Core Module, 199USD
CPU:BF531 400MHz

RAM:128MB

NOR FLASH:2MB

NAND FALSH:128MB

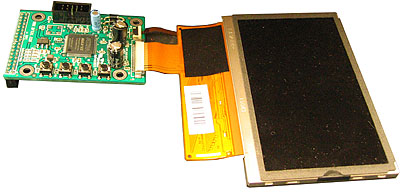

3.5 inch LCD, with TFT extend board, 18bit color 320x240, 89USD

Or

4.3 inch LCD, with TFT extend board, 16/24bit color 420x272, 119USD




Package Include

1.        Base board, core module and LCD.

2.        Software download link; with user manual, schematics, U-boot, uClinux, and module driver in source code.

3.        Power adapter

4.        JTAG cable



And you might need our emulator product for ADI DSPs.



Online Order Now! Global Shipping in 2 days!


We accept online order and ship globally, our online order system will tell shipping fee according to your address, and automaticly generate PI Invoice to you.
Please send email to us if you have any question for this product, or want product document in more detail, or question for order or payment or shipping. Contact information is at the bottom of the page.
Sample price is announced hereby above. Ask for quotation when order quantity > 3pcs.
Parts of product, like core module, SBC, stamp, daughter card, single board(without LCD), motherboard, baseboard, LCD, sell seperately, email us for quatation.
