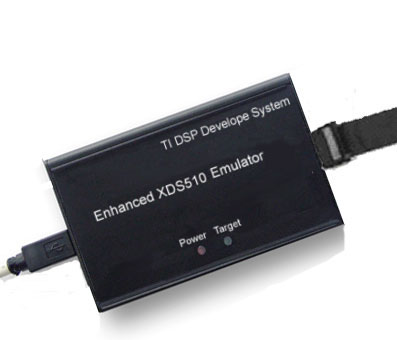

XDS510 Emulator

Model Standard
Vendor Quickembed Trakmark
In Stock Yes Lead Time  3 days
Promotion Update Time
Voucher Limit
Product Name XDS510 Emulator
Product ID 2009053108154199 Warranty  1 Year
Price US$99/unit

Shipping Fee and tax not included.



Product Introduce:
Enhanced XDS510&560 Emulator for TI DSPs.
For TI C2000/C3000/C5000/C6000/OMAP/DM642/Davinci DSPs.
plug and play compatible with USB2.0
Product Detail:

1.        XDS510 Supports Texas Instruments Digital Signal Processors with a JTAG (IEEE 1149.1) interface: TMS320C2000, TMS320C2000, TMS320C5000, TMS320C6000, C3X, C5X, C6X, DM642, DM643x and OMAP platforms.

2.        XDS510 Supports Flash Programming for F28x/F240x/F24x/F20x.

3.        XDS560 Supports Davinci All Series, DM643x , DM6443, DM335, DM644x.

4.        XDS510 has upto 800KBps download rates, nearly the same with xds560.

5.        Supports debugging multiple DSPs in a system.

6.        Supports 1.0~5.0 volt DSP devices.

7.        Supports RTDX (Real Time Data eXchange).

8.        USB 2.0 host interface. Fully Plug-and-Play compatible and hot pluggable. The DSP emulator may be connected or disconnected at any time without damage to the hardware.

9.        Power provided by the USB bus, no additional power supply is required.

10.    Support Windows98/NT/2000/XP.

11.    Compatible with Texas Instruments Code Composer (CC) v4.1x, Code Composer Studio (CCS) v1.2, and Code Composer Studio v2.0,3.1,3.2,3.3 and later.

12.    Standard 14 pin JTAG Emulator interface without occupying target system resource.


Package Include

One USB JTAG Emulator

One USB cable

One JTAG cable

Software download link; with user manual.

You might be interested in XDS560.



Order Now

Price US$ Quantity Option requirement:
Note: When total value exceeds 500USD, we declare 500USD when shipping, avoiding many issues.
Contact us if you have other require on this.

Select Shipping Rate here. Add "Combined Shipping" when order more than one kit.

Shipping Service


Please contact us if you have any question for order and payment.
Sample price is exactly announced hereby above.
ONLY ask for quotation when order quantity > 3pcs.
Parts of product, like core module, SBC, stamp, daughter card, single board(without LCD), motherboard, baseboard, LCD etc, sell seperately, email us for quatation.

Main information has been shown hereby above, detailed documents ONLY provided after your purchase.
If you have questions please send email asking us.

We provide technical support

Our delivery has mass producing quality assurance. We warrants our products against manufacturing defects for a period of one year from date of shipment to the original purchaser, and offers one year of software updates to registered customers free of charge.
