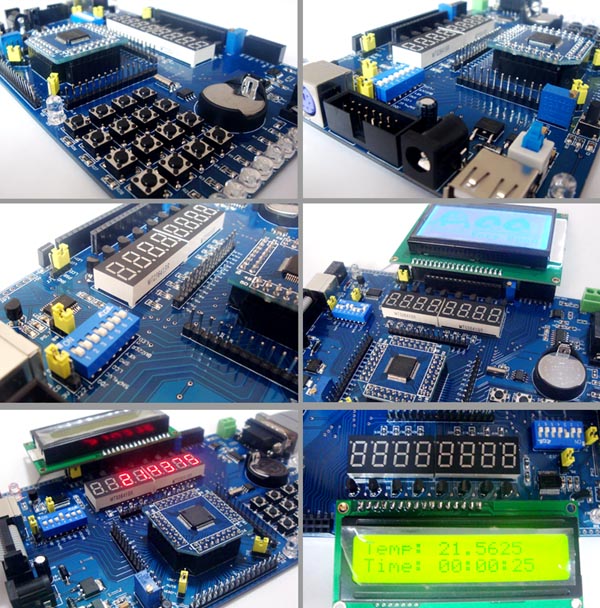

Resources:
1. Power supply USB 5V or DC 9V-24V
2. DC-DC convert 5V-->3.3V, 3.3V-->5V
3. 5V relay, with color LED
4. PS2
5. JTAG
6. Buzz
7. nrf905(PTR8000+) wireless port
8. 12-Bit temperature sensor DS18B20
9. 8 channel 12-Bit ADC
10. 1602 LCD port (5V/3.3V)
11. 12864LCD port (5V/3.3V)
12. digit display
14.RTC
15. 2048x8-Bit EEPROM
16. 8-Bit DAC5571
17. 4x4key board
18. 4×1key
19.RS232
20. RS485
21.8 LEDs
22.IR
23.IO extended
Experiments:
1.LED blink
2.Timer: setting MCLK.ACLK.SMCLK.
3.setting low power mode.
4.IO control.
5.watch dog
6.register read/write
7.Flash read/write
8.communication rs232 rs485 etc
9.ADC
10.buzz
11. digit display
12. key board test
13. LCD display
14. IR test
15. PS2 test
16. sensor test
17. RTC test
18. EEPROM test
19. AD DA test
Optional:
1.1602 LCD 5USD.
2.parallel port emulator, 10USD.
3.12864LCD 20USD
4.nrf905 wireless module 30USD
