Tiny2416 micro2416 S3C2416 ARM9 Board Replace of friendlyarm micro2440 s3c2440

Model Standard
Vendor Quickembed Trakmark
In Stock Yes Lead Time  3 days
Promotion Update Time
Voucher Limit
Product Name Tiny2416 micro2416 S3C2416 ARM9 Board Replace of friendlyarm micro2440 s3c2440
Product ID 2016062810104785 Warranty  1 Year
Price US$39.00/unit

Shipping Fee and tax not included.

Turn your prospective idea into practical product real profit in 6 months.
Product Introduce:

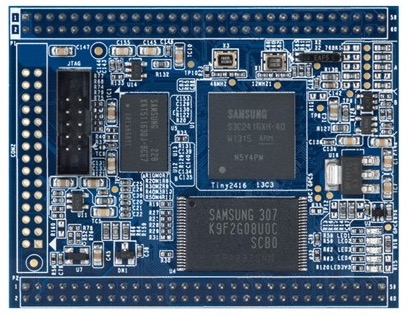

Tiny micro 2416 Stamp Module friendlyarm with 400 MHz Samsung S3C2416 ARM9 processor.
Product Detail:

S3C2416 is the second best replace for S3C2440.
Compare performance, S3C2451>S3C2416>S3C2440
Compare price, S3C2416<S3C2440<S3C2451
Micro2416 is fully compatiable with Mircro2440, pin-to-pin compatiable, mechanical  compatiable, software compatiable. Micro2416 is under constrution, upon request.
Tiny2416 is fully compatiable with tiny210/2451/6410 etc.

tiny2416 is a high cost-effective ARM Linux Development Board which is based on the new Samsung® ARM9 CPU offering high performance, lowest power consumption and a high degree of functional integration for entry level embedded applications. The CPU is with main frequency of 400MHz and contains 2D graphics acceleration video card which supports common graphics acceleration function such as DirectDraw and GDI. The maximum resolution of the video card is up to 1024*1024 pixels. The s3c2416 ARM9 CPU also has the following functions: supporting USB2.0 high-speed interface, SD/MMC2.0 protocol interface, high-speed SPI interface protocol (the maximum speed is 50Mbps), and so on. In addition, S3C2416 supports a variety of startup modes, such as SD card, USB, OneNand, Norflash and Nandflash, so it greatly accelerates the debugging and development of the upper applications and underlying drivers.
tiny2416 SBC implements all the features of S3C2416, and it is designed specifically for business users who develop consumer electronics, industrial control, vehicle navigation, PDA and other electronic products.



Stamp Module, Price 39$/pc

Specification

Dimension: 64 x 50 mm
CPU: 400 MHz Samsung S3C2416 ARM926EJ (max freq. 533 MHz)
RAM: 128 MB, 16 bit Bus
Flash: up to 1GB NAND Flash
Serial, SPI, I2C, I2S, SD/MMC, USB, LCD Interface
Analog Input and Output
User Outputs: 4x LEDs
Expansion headers (2.0 mm)
Debug: 10 pin JTAG (2.0 mm)
Power: 2-6V
OS Support
Windows CE 6
Linux



SDK-Board

Specification

Dimension: 180 x 130 mm
EEPROM: 256 Byte (I2C)
Ext. Memory: SD-Card socket
Serial Ports: DB9 connector (RS232), total: 4x serial port connectors
USB: USB-A Host 1.1, miniUSB Slave/OTG 2.0
Audio Output: 3.5 mm stereo jack
Audio Input: 3.5mm jack + Condenser microphone
Ethernet: RJ-45 10/100M (DM9000)
RTC: Real Time Clock with battery (CR1220)
Beeper: PWM buzzer
Camera: 20 pin Camera interface (2.0 mm)
LCD: 40 pin + 45 pin connector for FriendlyARM Displays and VGA Board
User Inputs: 4x push buttons and 1x A/D pot
Expansion headers (2.0 mm)
Power: regulated 5V

Kit4.3inch, 480x272, touch screen, Price 79$

Kit7inch, 800x480, touch screen, Price 99$

Kit10inch, 1024x600, touch screen, Price 199$

Other kit please ask us, offer 5inch, 8inch, usb-3G, usb-camera, usb-wifi etc.

Provide full detail resources, linux/wince/android souce code, driver, sample code, application etc, user manual of how to build/download.




Online Order Now! Global Shipping in 2 days!


We accept online order and ship globally, our online order system will tell shipping fee according to your address, and automaticly generate PI Invoice to you.
Please send email to us if you have any question for this product, or want product document in more detail, or question for order or payment or shipping. Contact information is at the bottom of the page.
Sample price is announced hereby above. Ask for quotation when order quantity > 3pcs.
Parts of product, like core module, SBC, stamp, daughter card, single board(without LCD), motherboard, baseboard, LCD, sell seperately, email us for quatation.
find gps,gprs,wifi,camera etc in
modules and bluetooth,485,can etc in accessories, or enclosures, jlink v8, ulink, openjtag etc tools.
We are now offer
Capacitive Touch Panel for all of our ARM platforms.


Product Warranty and Technical Support.
Our delivery has mass producing quality assurance. We warrants our products against manufacturing defects for a period of one year from date of shipment to the original purchaser, and offers software updates lifetime to registered customers free of charge. We have an experts team to provide technical support.
We have been running 8 years, this is our license from Chinese government website:
http://www.sgs.gov.cn/LicenceView/Id=20120530152953117
We have served 1000+ customers from 100+ countries all over the world, Please find a list of part of our customers here:
http://www.quickembed.com/Tools/Shop/Customer/Index.html
We can provide contact if you want a reference.
We are looking for sell/retail/ditribute/channel partners in all over the world.

You are encouraged to share your information in the forum, share your business information, share your success, it will get you more business and success!
If you need some partner, technical, hardware, software, marketing, channel, sales, just post your message on the forum, because someone in the world may be finding you!
Our world and technology is changing and growing so fast that no one no single company can do all work, clever people can get information from the web and try to make it but will take a lot time to learn, we need cooperation!
Promote your product in the forum, or just an idea, don't be afraid other will copy, there are similar products and ideas all over the world, the only difference is who will make it real in a right time in success!
If you want more formal, list your product in our web catalog, to promote it to all over world, we are open, please send email to us.
We can build a prototype sample very fast, for you, to demonstrate, to your customer.
A demo is much more powerful than a thousand words!
It will save you a lot of valuable time!
Make a concrete step from good idea to real success!
We help you succeed, providing ARM Embedded Quick Demo.

ODM/OEM Service


Layout, for special defined interface and resize the board for your requirements.
Product prototyping, sourcing accessories for your product requirements.
Recommend GPS module, GSM/GPRS module with communication software.
Software Developing.
Sourcing solution and turn key to you.

You might have interest to know what products this board makes, please send us an email to know more product design cases.  Embedded pc computer system has broad usge, some examples:
QButton, world first post-it bluetooth sensor, open data, customize for your usage.

Popular bluetooth v4.0 ble sensor tag, smart devices, wearable electronic computer.

Palm size desktop computer.

U-disk size computer


Android 4.0 5inch 7inch capacitive touch pad


9D position pose system digital compass
GPS, Compass and accelerator in one tiny module.

GPS GPRS LBS solution.
Navigate Locate Track Solution, Location Based Service


Robot Motor Medical Testing System
One motor control board controlling 9 motors at the same time
Robot arm move and grab.


12" to 15" size multimedia or HMI solution, fixed on wall or desk or large vehicle:

Backside:

10" solution, fixed in car:

7" solution, fixed in car:
more 7inch cases here:
http://www.quickembed.com/Tools/Shop/Solution/201001/67.html



Using SBC is as easy as 1,2,3; simply prototype and test your development using a suitable SBC, then design your custom connector board and finally build your product.

The advantage of SBC is that when you define a new product, you have only small change on baseboard/motherboard, no change on SBC/daughter board, it saves great effort, and save much expense as the SBC is big lots produced while baseboard can be produced in small lots,  also this helps improving the quality of your products.
Read more about arm board customize design odm service.
Read more about arm linux driver and application software develope.

Our mission is to provide quick start and easy use embedded platforms for maximize customers productivity. If you find any platform more competitive than ours, please do let us know. We can improve our product for you.
Those who want to list your product here in this web and sell to worldwide customers, please contact us.

-- Stay Hungry. Stay Foolish. Memory of Steve Jobs.
-- Dream bigger, Love Deeper, Live Longer! :-)
